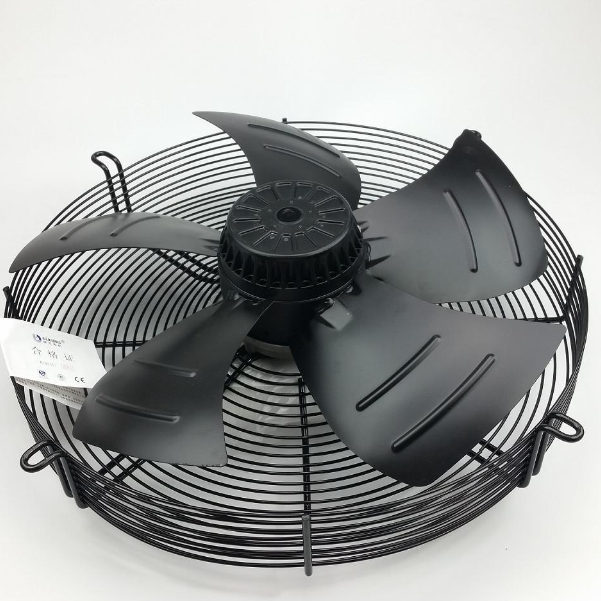

As a professional purchasing engineer, what key points should be considered when purchasing axial fans for evaporators?

This is the foundation. You must understand the exact requirements before looking at products.

Airflow (CFM or m³/h): The volume of air the fan must move. This is determined by the thermal load the evaporator needs to reject. Never select a fan based on diameter alone.

Static Pressure (Pa or inches H₂O): The resistance the fan must overcome. This includes the resistance from the evaporator coil fins, protective grilles, filters, and any other obstructions in the air path. This is the most common oversight. A fan selected for "free air" (zero static pressure) will perform poorly in a real-world restricted application.

System Curve: Work with the design engineering team to get the system curve for the evaporator. This graph plots the static pressure against airflow, allowing you to select a fan that operates at its Best Efficiency Point (BEP) for your specific application.

Aerodynamic Performance: Evaluate the fan's performance curve from the supplier. Ensure the provided curve is for the actual fan assembly (fan + motor + guard) and not just the blade. The operating point (your required CFM @ Static Pressure) should be to the left of the peak pressure point on the curve to avoid stall conditions.

Material: Aluminum (good balance of cost, weight, and performance), engineered plastics (e.g., PBT, Nylon for corrosion resistance and lower noise), or stainless steel (for harsh environments).

Aerofoil Shape: Airfoil blades are generally more efficient and quieter than sickle or paddle blades. They generate more airflow at higher static pressures.

Pitch Angle: Often adjustable. Confirm if the pitch is fixed or can be field-adjusted to fine-tune performance.

Motor Specifications:

Type: EC (Electronically Commutated) motors are modern, highly efficient, and allow for seamless speed control. AC induction motors are more traditional and cost-effective but less efficient and require a separate VFD for control.

Efficiency Class (e.g., IE3, IE4): Higher efficiency reduces operational energy costs significantly.

Protection Rating (IP Code): IP54 is a common minimum for evaporator applications to protect against dust and water splashing. For harsh, wet environments (e.g., food processing, coastal areas), IP55 or IP66 is necessary.

Insulation Class (e.g., Class F, Class H): Defines the thermal durability of the motor windings. Class F (155°C) is standard; Class H (180°C) is for higher ambient temperatures.

Lubrication: Sealed-for-life bearings vs. greaseable bearings. Sealed bearings are typically maintenance-free but have a finite life.

Vibration & Balance: Fans should be dynamically balanced to a recognized grade (e.g., ISO G6.3 or G2.5 for sensitive applications) to minimize noise and bearing wear.

Ambient Temperature: Affects motor selection (insulation class) and potential thermal overload.

Air Characteristics: Is the air clean, dusty, greasy, corrosive (e.g., from seawater, chemicals), or humid? This dictates material choices (e.g., stainless steel housing, epoxy-coated blades/motor).

Acoustic Requirements (Noise - dBA): Critical for commercial HVAC, cold rooms near offices, or medical applications. Request fan sound power data. Lower RPM (often through a larger fan or EC motor) typically means lower noise.

Duty Cycle: Will the fan run 24/7/365? This demands a higher-quality motor and bearing system than one used intermittently.

Safety Standards: Ensure the fan and motor comply with relevant international and regional standards (e.g., UL/CUL in North America, CE in Europe, IEC globally).

Performance Certification: Look for products tested to standards like AMCA (Air Movement and Control Association) for verified airflow and pressure ratings. Never trust unverified performance claims.

RoHS/REACH: Compliance for hazardous substances, especially important in Europe.

Technical Support: Does the supplier provide detailed performance data, CAD drawings, and engineering support?

Lead Time & Availability: Critical for production planning. Are motors and parts readily available?

Total Cost of Ownership (TCO): Look beyond the unit price. Consider:

Energy Consumption: An efficient but slightly more expensive EC fan can have a payback period of less than a year.

Maintenance Costs: Sealed bearings vs. serviceable ones.

Reliability & Warranty: A longer warranty often indicates higher quality and reduces risk of downtime.

Testing & Quality Assurance: Inquire about the supplier's QA processes. Can you witness factory acceptance tests? Do they provide performance test reports for the batch?

Procurement Checklist Summary:

Define Requirements: CFM @ Static Pressure, based on the system curve.

Select Technology: EC Motor (for control/efficiency) vs. AC Motor (for cost).

Specify Environment: IP rating, material construction, temperature.

Set Quality Benchmarks: AMCA certification, balancing grade, insulation class.

Analyze Costs: Calculate TCO, not just unit price.

Vet the Supplier: Technical capability, lead times, warranty, and support.
